---Features

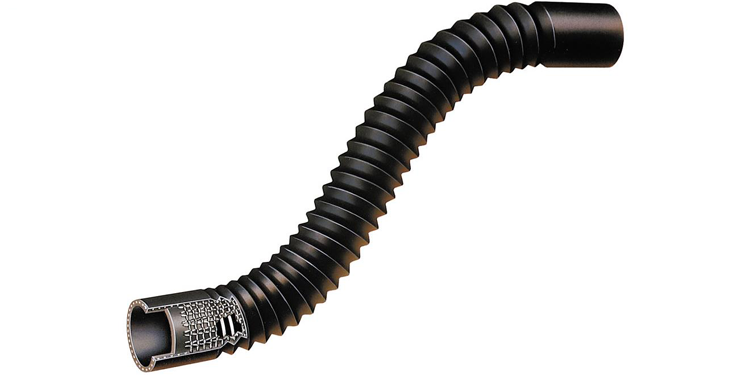

Compared with the standard silicone tube, the Flexible silicone hose manufactured with a steel wire spiral in-plant inside can withstand stronger pressure, while having excellent flexibility. In addition, the FBYCO silicone hose manufacturer’s customized model service makes the products more adaptable.
---Characteristics
Polyester - Standard Build (-40°C - 170°C)
Nomex - High Temp Build (-40°C - 220°C Made To Order)
Fluoro Lined - Oil and Fuel Resistant Liner (-40°C - 170°C Made To Order)
We stock the following sizes with our Fluoro Liner:
13mm 16mm 19mm
All hoses are INTERNAL diameter.
Highest quality hand made hoses, lined and multi-layered with quality fabric + wire reinforcements.
Fantastic product for coolant, ideal for top & bottom radiator connections bend into custom shape.
---Burst Pressure and Bend Radius Data
| Inner Diameter (mm) | Burst Pressure (Bars) | Bend Radius (mm) |
| 25.40 | 23.8 | 90 |
| 31.80 | 18.3 | 103 |
| 38.00 | 17.2 | 115 |
| 44.50 | 15.8 | 156 |
| 50.80 | 14.3 | 205 |
| 63.50 | 13.6 | 260 |
| 76.20 | 12.5 | 349 |
| 88.90 | 12.1 | 397 |
| 102.00 | 10.3 | 484 |
| 114.00 | 8.2 | 575 |
| 139.70 | 6.1 | 636 |
---Material
Silicone, a synthetic rubber-like material known for its excellent high-temperature resistance, flexibility, and inertness. The inner lining is made of silicone to ensure compatibility with the materials being transported.
